Bring the lab anywhere
Real-time measurement of trace compounds in air
Vocus CI Series
The Vocus CI Series are high performance, field-ready mass spectrometers for real-time trace detection of a broad range of compounds. With drawer-like modules, automatic connections, interchangeable accessories, and integrated tools, these carefully engineered instruments feature a compact footprint optimized for both laboratory and field measurements.
Switch between the VUV-based Vocus PTR Reactor for general VOC analysis and the highly sensitive, selective Vocus Aim Reactor, optimizing detection for target analytes or adapting to evolving research needs.
- Fast, real-time analysis with sub-pptv limits of detection
- High specificity with high mass resolving power
- Compact, field-ready design
You are currently viewing a placeholder content from Vimeo. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information
Vocus Flex Introduction
product manager, Dr. Michael Kamrath.
Tools
The Vocus CI Series comes with a comprehensive set of tools to meet your most challenging analytical needs.
Aim Reactor
Fast and sensitive detection of trace organic and inorganic compounds spanning the entire volatility range. View Details
PTR Reactor
A powerful system for the analysis of a broad range of volatile organic compounds (VOCs). View Details
High Resolution Separation
Resolution exceeding 10,000 M/ΔM available
Ion Mobility Mass Spectrometry
Enable isomer separation with the added IMS option. View Details
Selectivity
Customize your ion chemistries to your precise measurement needs

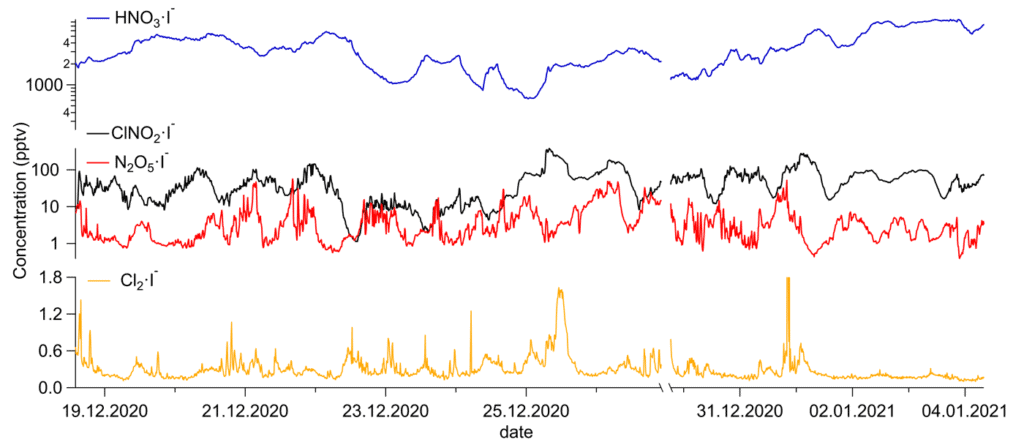

Wintertime Ambient Air Measurements of Trace Inorganics
Data collected from a Vocus 2R CI-TOF equipped with a Vocus Aim Reactor operating in I- mode to measure volatile inorganic compounds in ambient air over a 15-day wintertime period in Thun, Switzerland. This demonstrates the unique ability of the powerful CI-TOF coupled with the Vocus Aim Reactor to measure inorganics in ambient air at concentrations ranging from ppqv to ppb. Read more about this study here.
Vocus Flex 2R Mobile Deployment
The compact size of the high-performance Vocus Flex 2R CI-TOF (approximately 1 meter tall) enables exceptionally accurate, real-time measurements in conventional-sized vehicles. The timeseries shown here demonstrates mobile measurements conducted in Thun, Switzerland, using a Vocus PTR Reactor in a hybrid-electric SUV. This data shows high-precision measurements at low ppt concentrations with one-second time resolution. Read more about this study here.
